Reversible air-water heat pumps

AAC HP

R410A, R454B, R452B, R32, R513A

Nominal heating power
od 114,8 do 714,0 kW

Nominal cooling power
od 106,2 do 657,0 kW (R410A)

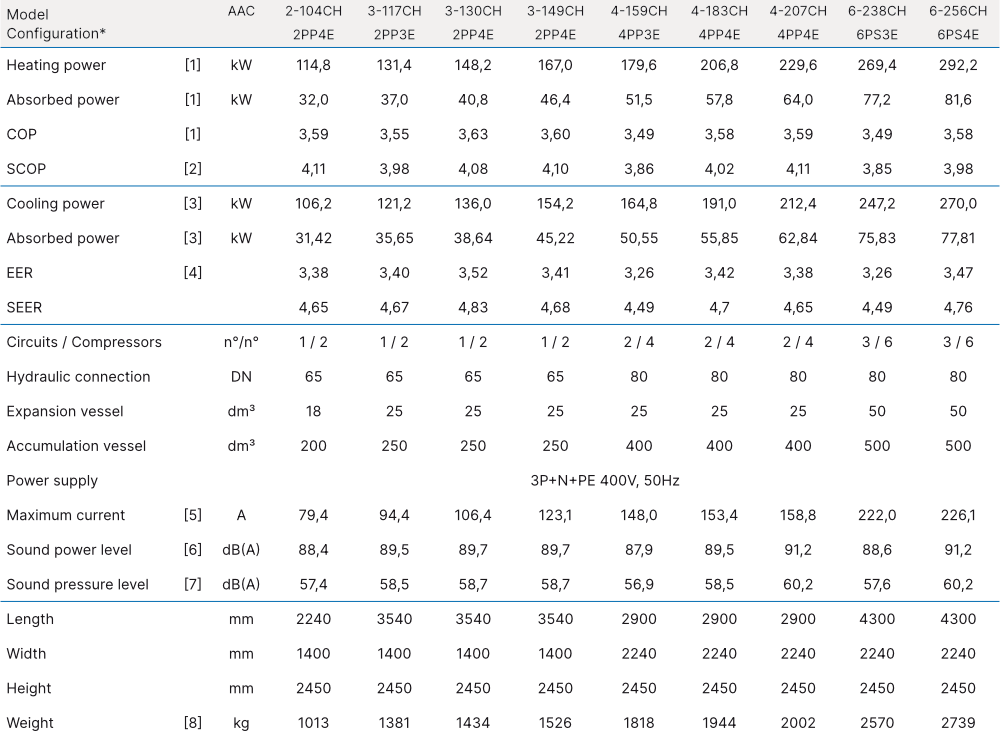

Basic technical parameters (R410A)

* Example of full device type designation: AAC2-104CH-2PP4E
Data declared according to EN 14511:2018. All data refers to standard units without accessories/options working at nominal conditions.
[1] Data referred to nominal conditions ambient temperature A7 °C, relative humidity 85%, W40/45 °C.
[2] Data declared according to (EU) 813/2013 at low temperature in average climate, fixed water flow and variable outlet water temperature.
[3] Data referred to nominal conditions, ambient temperature A35 °C and W12/7 °C.
[4] Data declared according to (EU) 2016/2281 for comfort low temperature application, fixed water flow and variable outlet water temperature.
[5] Current value that specifies the minimum main power wire size and circuit breaker size (operating value FLA is lower).
[6] On the basis of measurements taken in compliance with EN ISO 9614-1.
[7] At 10 m distance from the external surface, unit in a free field (in accordance with EN ISO 3744).
[8] Refer to empty units with no options fitted.

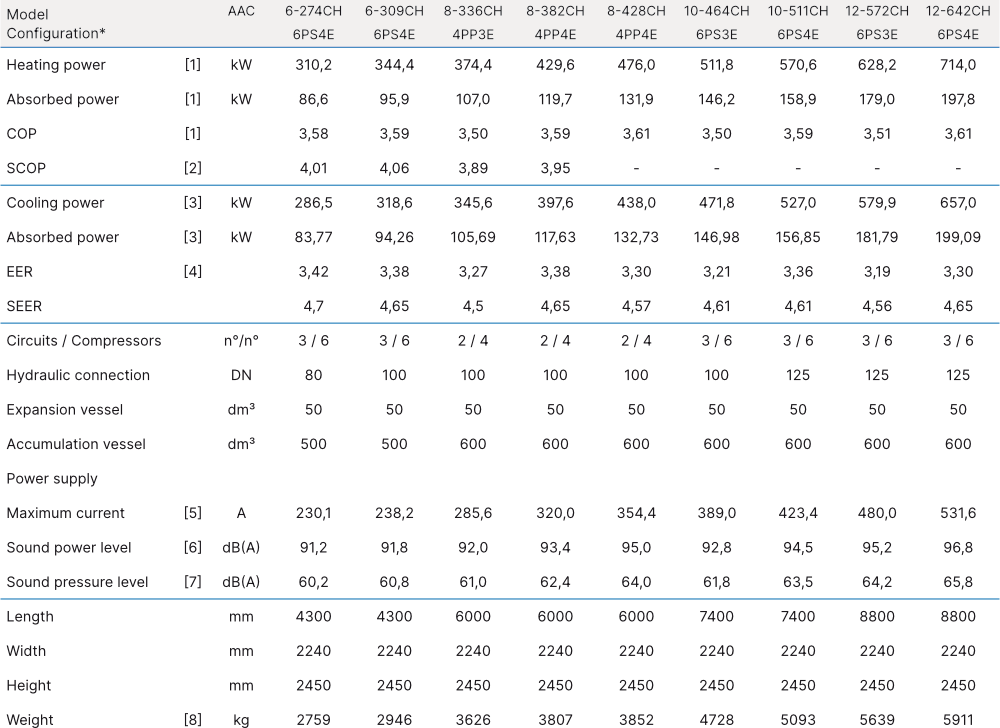

*Example of full device type designation: AAC6-274CH-2PS4E
Data declared according to EN 14511:2018. All data refers to standard units without accessories/options working at nominal conditions.
[1] Data referred to nominal conditions ambient temperature A7 °C, relative humidity 85%, W40/45 °C.
[2] Data declared according to (EU) 813/2013 at low temperature in average climate, fixed water flow and variable outlet water temperature.
[3] Data referred to nominal conditions, ambient temperature A35 °C and W12/7 °C.
[4] Data declared according to (EU) 2016/2281 for comfort low temperature application, fixed water flow and variable outlet water temperature.
[5] Current value that specifies the minimum main power wire size and circuit breaker size (operating value FLA is lower).
[6] On the basis of measurements taken in compliance with EN ISO 9614-1.
[7] At 10 m distance from the external surface, unit in a free field (in accordance with EN ISO 3744).
[8] Refer to empty units with no options fitted.
