Low temperature air-water heat pumps

SAC EVI

R410A

Nominal heating power
od 12,7 do 82,8 kW

Nominal cooling power
od 11,4 do 72,6 kW

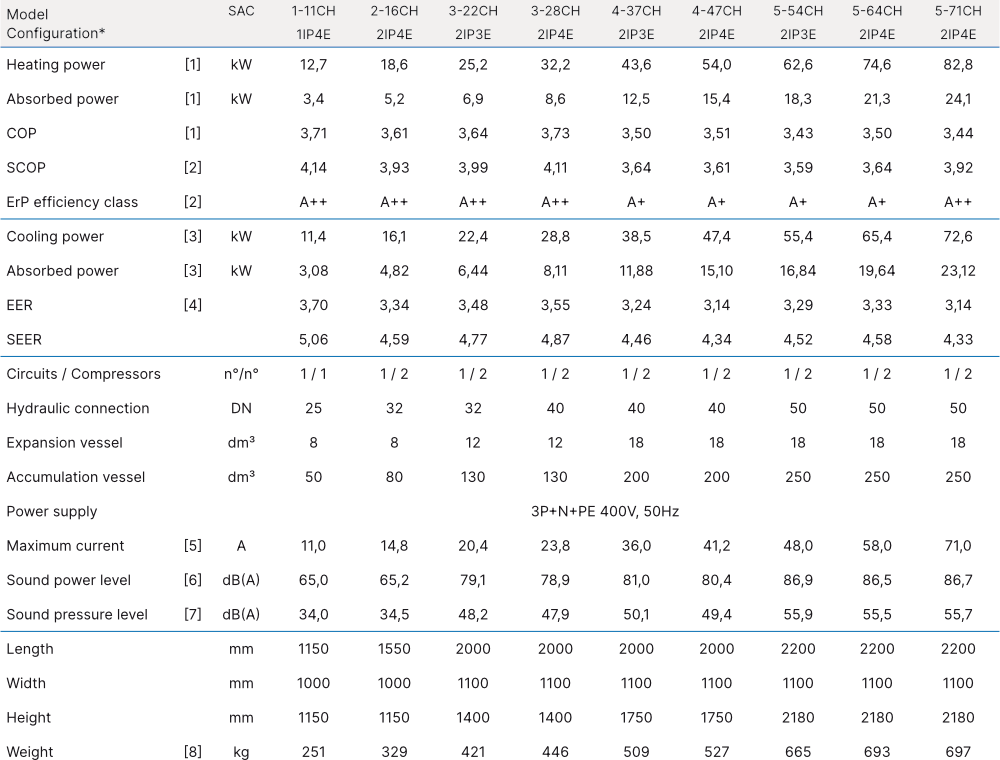

Basic technical parameters (R410A)

* Example of full device type designation: SAC1-11CH-1IP4E
Data declared according to EN 14511:2018. All data refers to standard units without accessories/options working at nominal conditions.
[1] Data referred to nominal conditions ambient temperature A7 °C, relative humidity 85%, W40/45 °C.
[2] Data declared according to (EU) 813/2013 at low temperature in average climate, fixed water flow and variable outlet water temperature.
[3] Data referred to nominal conditions, ambient temperature A35 °C and W12/7 °C.
[4] Data declared according to (EU) 2016/2281 for comfort low temperature application, fixed water flow and variable outlet water temperature.
[5] Current value that specifies the minimum main power wire size and circuit breaker size (operating value FLA is lower).
[6] On the basis of measurements taken in compliance with EN ISO 9614-1.
[7] At 10 m distance from the external surface, unit in a free field (in accordance with EN ISO 3744).
[8] Refer to empty units with no options fitted.
